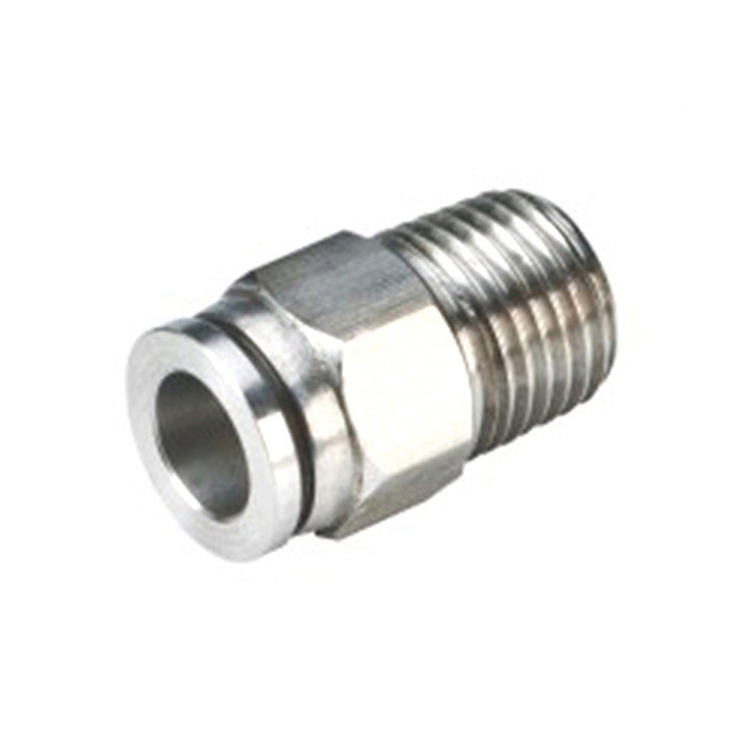

SNS BKC-PC lurus pneumatik stainless steel 304 konektor tabung satu sentuhan pas logam
Deskripsi Produk
| Model | A | B | C | D | D1 | E | L |
| BKC-PC4-M5 | - | - | - | - | - | - | - |
| BKC-PC4-M6 | - | - | - | - | - | - | |
| BKC-PC4-01 | 8 | 6 | 9.8 | PT1/8 | 4 | 10 | 19 |
| BKC-PC4–02 | 9 | 6 | 9.8 | PT1/4 | 4 | 14 | 21 |
| BKC-PC6-M5 | - | - | - | - | - | - | - |
| BKC-PC6-M6 | - | - | - | - | - | - | - |
| BKC-PC6-01 | 9 | 8 | 12 | PT1/8 | 6 | 12 | 21 |
| BKC-PC6-02 | 9 | 7 | 12 | PT1/4 | 6 | 14 | 21 |
| BKC-PC6-03 | 9 | 8 | 12 | PT3/8 | 6 | 17 | 23 |
| BKC-PC6-04 | 13 | 7 | 12 | PT1/2 | 6 | 22 | 25 |
| BKC-PC8-01 | 8 | 11 | 13.8 | PT1/8 | 8 | 14 | 24.4 |
| BKC-PC8-02 | 9 | 8 | 13.8 | PT1/4 | 8 | 14 | 23.6 |
| BKC-PC8-03 | 9 | 7 | 13.8 | PT3/8 | 8 | 17 | 22 |
| BKC-PC8-04 | 13 | 7 | 13.8 | PT1/2 | 8 | 22 | 25.4 |
| BKC-PC10-02 | 10.8 | 12 | 15.8 | PT3/8 | 10 | 17 | 27 |
| BKC-PC10-03 | 9 | 8 | 15.8 | PT3/8 | 10 | 17 | 23 |
| BKC-PC10-04 | 12.5 | 6.5 | 15.8 | PT3/8 | 10 | 22 | 25 |
| BKC-PC12-02 | 9 | 12 | 18 | PT1/4 | 12 | 19 | 27 |
| BKC-PC12-03 | 9 | 9 | 18 | PT3/8 | 12 | 19 | 24.4 |
| BKC-PC12-04 | 13 | 17 | 18 | PT1/2 | 12 | 22 | 25.5 |
| BKC-PC14-02 | 9 | 11 | 20 | PT1/4 | 14 | 22 | 26 |
| BKC-PC14-03 | 10 | 12.8 | 20 | PT3/8 | 14 | 22 | 28 |
| BKC-PC14-04 | 13 | 9 | 20 | PT1/2 | 14 | 22 | 28.6 |
| BKC-PC14-06 | - | - | - | - | - | - | - |
| BKC-PC16-02 | 9 | 12.3 | 22 | PT1/4 | 16 | 24 | 27.6 |
| BKC-PC16-03 | 9 | 12 | 22 | PT3/8 | 16 | 24 | 28 |
| BKC-PC16-04 | 13 | 7 | 22 | PT1/2 | 16 | 24 | 26,5 |
| BKC-PC16-06 | - | - | - | - | - | - | - |
